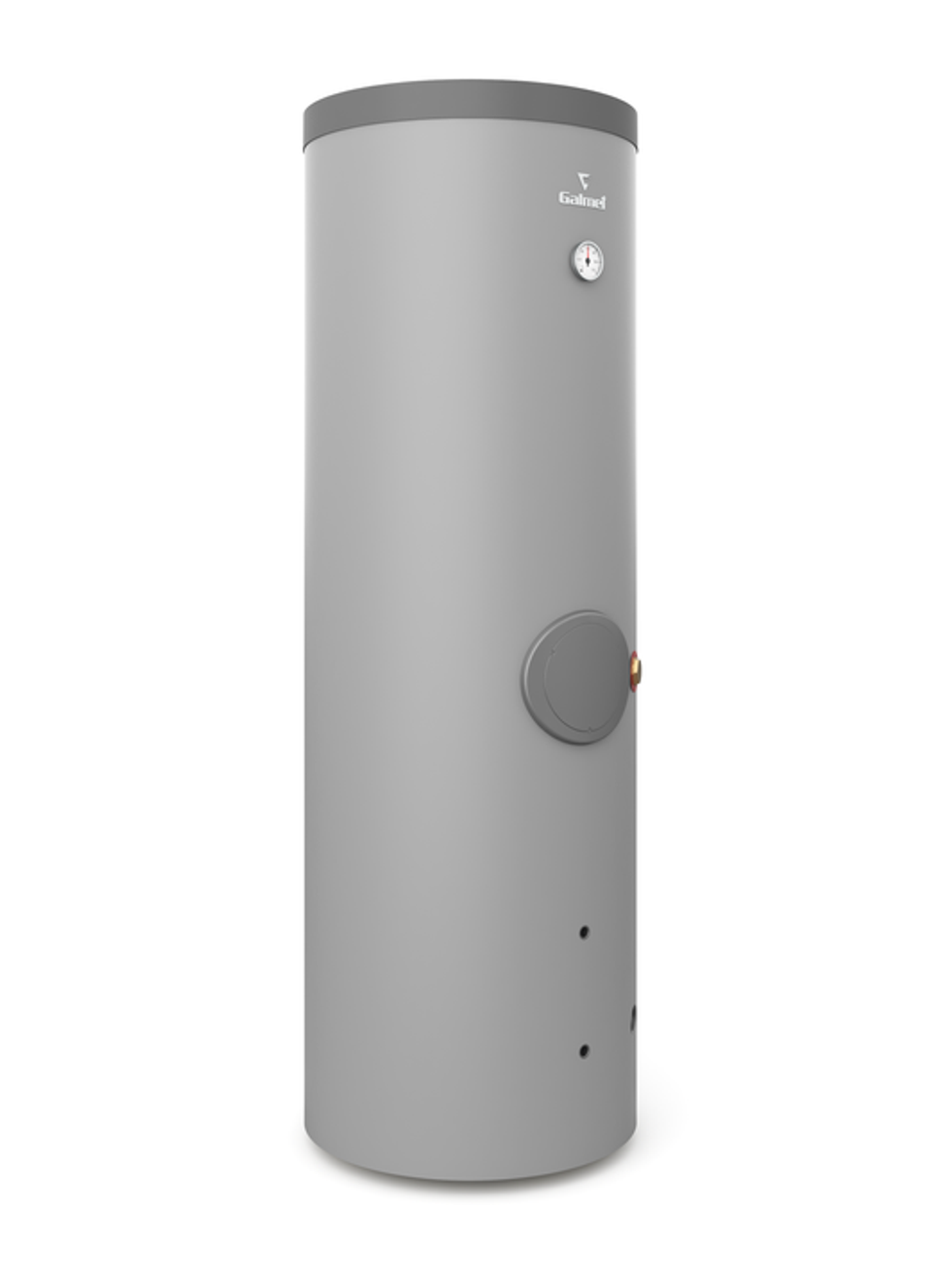

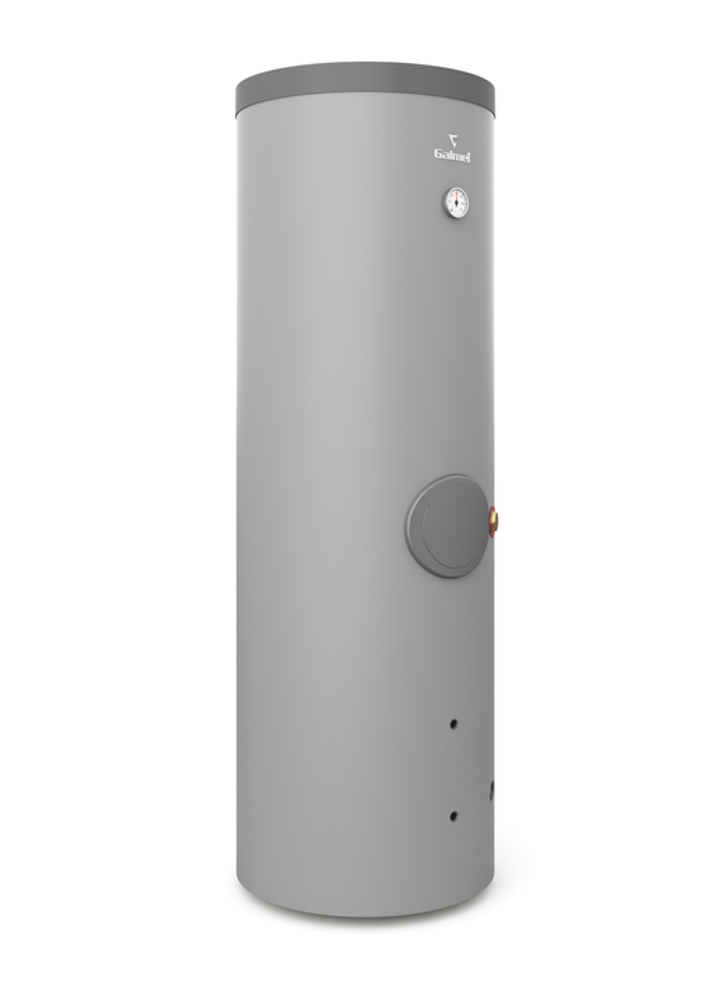

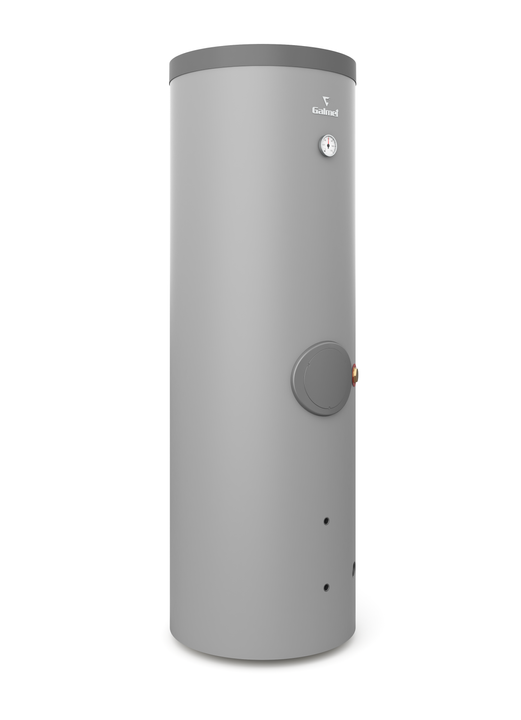

SG(K) COMPLETE

  • Combined domestic hot water tank with a high-capacity heat exchanger and buffer tank (including insulation)
  • Two independent systems in one unit
  • Complete solution – domestic hot water tank and buffer tank combined
  • Space-saving compact design
  • Fast water heating - spiral high-capacity heat exchanger (2.9 m²)
  • Lower installation costs due to simplified installation
  • High-quality ceramic enamel EXTRA GLASS®
  • Additional protection with a magnesium anode
  • Maintenance-free titanium anode – optional
  • Option to install an electric heating element – optional
  • Thermometer included as standard

SG(K) Complete is a comprehensive solution that combines a domestic hot water tank and a buffer tank in a single unit. Its exceptional water heating performance is ensured by a spiral heat exchanger designed specifically for heat pumps. The compact design saves space and allows for faster and easier installation

  • Technical parameters
  • Compatible heat pumps


Buffer Tank

SG(K) COMPLETE 250/110

ErP polyurethane foam insulation
B
d – inner diameter (mm)
550
D – outer diameter (mm)
670
L – height (mm)
1990
Rigid polyurethane foam insulation thickness (mm)
55
Net weight (kg)
175
Domestic Hot Water (DHW) Tank

Net volume (l)
243
Maximum operating pressure – tank (MPa)
1,0
Maximum operating pressure – heat exchanger (MPa)
1,6
Maximum operating temperature – tank (°C)
95
Maximum operating temperature – heat exchanger (°C)
110
Heat exchanger surface area (m²)
2,9
Heat exchanger volume (l)
24,0
Heat exchanger output (50/10/45 °C) (kW)
21,0
Required heating water flow rate (m³/h)
3,0
Buffer Tank

Net volume (l)
109
Maximum operating temperature – tank (°C)
95
Maximum operating pressure – tank (MPa)
0,3

ERApro 6kW
ERApro 9kW
ERApro 13kW
ERApro 16kW
